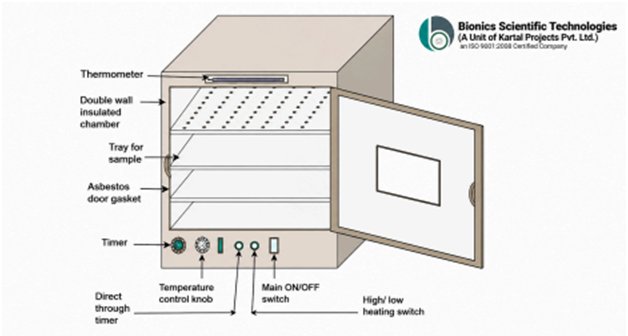

How Does a Hot Air Oven Work? Diagram with Complete Explanation

A person who has worked for an extended period of time in the laboratory knows that the process of sterilization does not only depend on the temperature but also on maintaining stable and consistent temperatures in the chamber. An extra degree or two makes all the difference at the end of the day,

particularly when the laboratory instruments are concerned. That is why the right Hot Air Oven Temperature proves crucial in the drying and sterilizing process.

Almost all laboratories use hot air ovens in order to dry the laboratory glassware, sterilize metal instruments, heat the powdered substances, and remove the moisture. In contrast to conventional steam sterilizers, hot air oven diagram rely on the usage of dry air and thus are extremely efficient in drying processes.

There are some lab technicians who favor dry heat sterilizers in regard to the ordinary glassware since the latter can be used right away.

Hot Air Oven Temperature and Time Chart

The required temperature usually depends on the material placed inside the chamber. Different items absorb and transfer heat differently, so sterilization timing also changes.

Material Temperature Time

Glassware 160°C 2 hours

Metal Instruments 170°C 1 hour

Powders 150°C 1.5 hours

Culture Media 160°C 2 hours

This Hot Air Oven Temperature and Time Chart reflects commonly used dry heat sterilization practices followed in laboratories and research facilities.

What is a Hot Air Oven?

The hot air oven can simply be defined as a heater which is used to provide sterile air inside it. It uses hot air circulation rather than steam pressure.

The hot air keeps circulating inside the heating chamber until a particular sterilization temperature is achieved for a certain period.

Explore Advanced Heating & Sterilization Equipment

Bionics Scientific delivers premium laboratory heating solutions for sterilization, drying, testing, and research applications with superior performance and durability.

● Hot Air Oven Manufacturers in India

● Laboratory Ovens Manufacturers in India

● Hot Air Oven Safety

● Hot Air Oven vs Autoclave

● Hot Air Oven Diagram

● Advanced Hot Air Oven for Precise Heating

You will normally see a Laboratory Hot Air Oven used in:

● Pharmaceutical laboratories

● Research facilities

● Hospitals

● Biotechnology centers

● Industrial testing environments

One reason these ovens continue to remain popular is because the process itself is uncomplicated. Most operators can understand the workflow quickly without advanced technical training.

Hot Air Oven Price in India

Type of Hot Air Oven Approximate Price Range

Small Laboratory Forced Air Oven ₹18,000 – ₹35,000

Benchtop Sterilization Oven ₹35,000 – ₹75,000

Industrial Drying Oven ₹75,000 – ₹2,00,000+

Customized Hot Air Oven Systems Depends on specifications

Hot air oven prices depend on chamber size, temperature range, insulation quality, airflow system, automation features, and customization requirements. Benchtop laboratory models are commonly used in research labs and educational institutes, while industrial drying ovens are preferred for pharmaceutical and manufacturing applications.

Hot Air Oven Working Principle

Working principle of the Hot Air Oven is quite simple.

An electric heater slowly increases the heat inside while an exhaust fan blows hot air through the chamber shelves. This air flow makes it easier to minimize temperature differences inside.

The common process in sterilization is composed of the following steps:

1. Pre-heating

The chamber will heat up to the necessary temperature prior to charging the material into it.

2. Air heating and circulation

During the heating stage air will be heated and circulated through the entire chamber. Retention Time

3. Retention Time

The furnace will hold the selected temperature for the period specified.

4. Cooling Phase

The chamber cools before materials are removed.

In practical use, proper airflow matters more than many people initially expect. Uneven air movement often creates hot and cold sections inside older ovens.

Why Dry Heat Sterilization is Still Used

Even though steam sterilizers are faster, dry heat still has advantages in specific situations.

Dry Heat Sterilization Works Well For:

● Metal instruments

● Glassware

● Powders

● Oils

● Moisture-sensitive materials

Because no steam is involved, the risk of rust or moisture residue becomes much lower.

In busy microbiology laboratories, this becomes useful when large batches of glassware need to be sterilized repeatedly throughout the day.

Common Applications in Different Industries

Hot air ovens are used in more places than most people realize.

1. Laboratory Applications

● Glassware sterilization

● Chemical drying

● Sample preparation

● Dry heat sterilization

● Microbiology work

2. Industrial Applications

● Component drying

● Material testing

● Stability testing

● Heat treatment procedures

The Large Scale Industrial Hot Air Oven may run non-stop in production settings where heating is required as part of the process of manufacturing.

Difference Between the Two Systems

The old-style ovens used heat convection whereas the new-age ovens use heat convection by means of forced air.

1. Natural Convection

● Slower airflow

● Less temperature uniformity

● Suitable for delicate lightweight samples

2. Forced Convection

● Faster heat transfer

● Better temperature consistency

● Improved drying efficiency

● More reliable sterilization

Most laboratories today prefer forced-air systems because temperature recovery is usually faster during continuous operation.

Advantages of Hot Air Ovens

There is a reason laboratories continue using hot air ovens year after year.

Common Benefits

● Moisture-free sterilization

● Lower corrosion risk

● Consistent heating performance

● Suitable for glassware and metals

● Reduced maintenance complexity

● Long operational life

Another practical advantage is simplicity. Compared to some advanced sterilization systems, hot air ovens are relatively easier to maintain.

Limitations You Should Know

Like every laboratory system, hot air ovens also have limitations.

Common Drawbacks

● Longer sterilization cycles

● Unsuitable for plastics or rubber

● Higher temperatures required

● Slower than autoclaves

● Certain microorganisms resist dry heat

For this reason, laboratories often use different sterilization methods depending on the material type.

Hot Air Oven Temperature Range

The normal Hot Air Oven Temperature Range usually falls between:

● 50°C to 250°C

● Up to 300°C in industrial models

The exact range depends on the application, chamber design, and process requirement. Some of the more sophisticated hot air ovens can even have:

● PID Digital Controller

● Safety Alarms

● Pre-programmed heating patterns

● Variable Airflow systems

How Temperature Variation Created Problems

One time, a pharmaceutical testing laboratory had encountered irregularities in microbiology results while performing its routine sterilization process. Initially, it appeared that there was a problem with handling.

But then, it became clear to them that there were air flow problems within the old oven chamber; the material placed at one side was treated differently than other shelves.

After replacing the unit with a forced-air model from Bioniccs Scientific, the laboratory observed:

● More stable chamber temperatures

● Better sterilization consistency

● Reduced contamination concerns

● Fewer repeat testing cycles

In real laboratory environments, these small operational differences often have a larger impact than expected.

Safety Precautions During Operation

Working with high temperatures always requires attention.

Recommended Precautions

● Avoid overcrowding shelves

● Allow proper cooling before opening

● Wear heat-resistant gloves

● Keep flammable materials away

● Clean the chamber regularly

● Inspect temperature calibration periodically

Many heating problems actually begin because routine maintenance gets ignored for long periods.

Choosing the Right Hot Air Oven

When choosing a hot air oven to buy, most laboratories typically consider the following criteria:

● Size of chamber

● Accuracy of temperature

● Quality of air circulation

● Effectiveness of insulation

● Efficiency of controller

● Fuel economy

● Design of internal shelves

Small laboratories will usually just use bench-top versions whereas industries will need bigger units.

10 FAQs About Hot Air Ovens

1. How does a hot air oven work?

The working of the hot air oven is based on the heating of air within the enclosed area which is then used for killing the bacteria, fungi, spores, microorganisms and other germs through dry heat sterilization.

2. How does hot air oven work?

Hot air oven works on the basis of the dry heat convection process by which the heated air flows within the chamber at very high temperatures to sterilize the objects.

3. At what temperature do hot air ovens sterilize?

Generally, hot air ovens sterilize the items at temperatures ranging between 160°C to 180°C depending upon the sterilization period.

4. At what temperature is the glassware sterilized using a hot air oven?

The glassware sterilization in a hot air oven takes place at temperatures of 160°C for two hours or 170°C for one hour.

5. What are the uses of a hot air oven in the laboratory?

The uses of a hot air oven include:

● Glassware sterilization

● Drying of laboratory specimens

● Metal instrument sterilization

● Heating process

● Moisture removal

6. What is a hot air oven for the laboratory?

Laboratory hot air oven is laboratory equipment that is used for heating, drying, and sterilization with dry heat.

● Use of hot air oven

● For using hot air oven:

● Clean materials and put them inside the chamber.

● Set the temperature and time settings.

● Start the oven and make sure proper heating takes place.

Wait till the process is completed and allow the chamber to cool down.

7. Difference between hot air oven and autoclave?

Difference between hot air oven and autoclave: Hot air ovens use dry heat for sterilization; whereas autoclaves employ moist heat sterilization process with the help of pressurized steam.

8. Why hot air oven for glassware sterilization?

Because hot air ovens have dry heat that does not form any moisture hence glass materials get protected from rusting.

9. Sterilization of plastics through hot air ovens?

Dry heat cannot be tolerated by plastic material; hence such items cannot be used in hot air oven for sterilization.

10 In which industries hot air ovens are used?

● In pharmaceutical industry

● Laboratories

● Hospitals

● Biotechnology laboratories

● Food industry laboratories

● Industries

Conclusion

Correct hot air oven temperature control is essential for effective sterilization, proper drying operation, and safety in a laboratory setting. Even though hot air ovens are not commonly utilized in modern laboratories anymore, they continue to serve a useful purpose in laboratory equipment.

The advantage of hot air ovens to generate dry heat with no moisture being present makes them highly effective when it comes to metal objects and powder material. Bioniccs Scientific produces laboratory and industry hot air ovens for safe and reliable operation.
